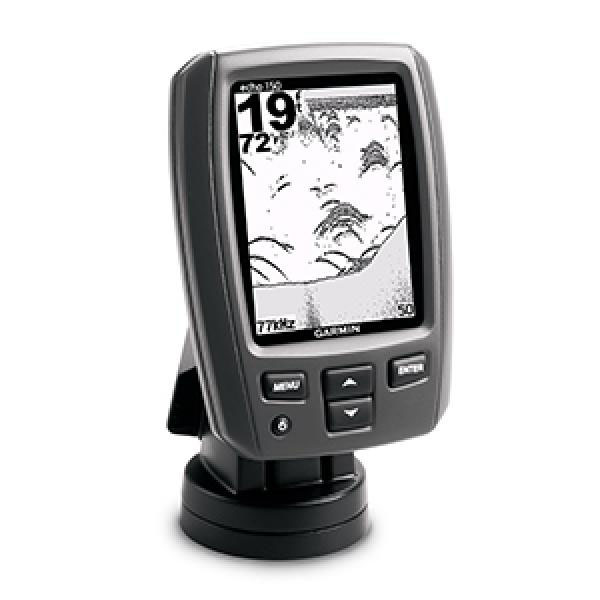

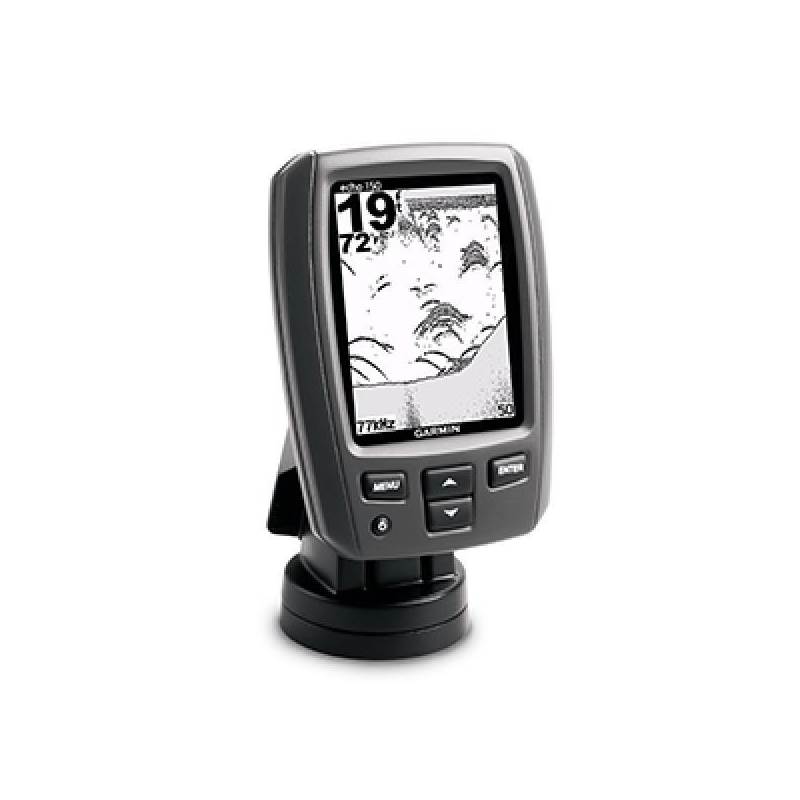

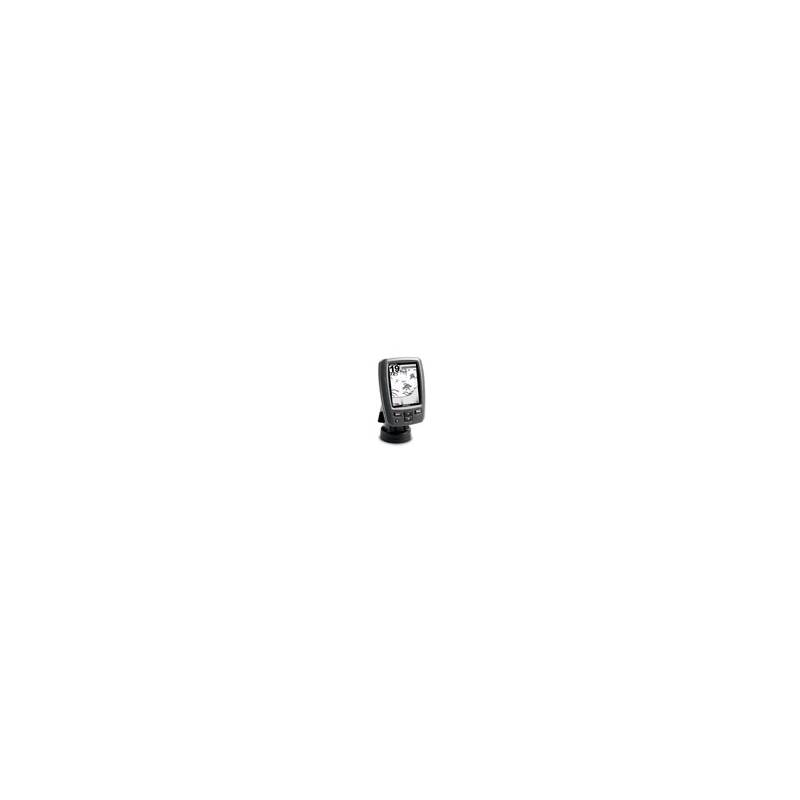

The Garmin Echo 150 FishFinder is an impressive dual-beam fishfinder with a 4-inch greyscale display.

Having dual-beam technology at the price of this unit is extremely good value. With the 200 watts (RMS) power available, you can accurately scan to depths of 1300 feet in fresh water. In shallower water, a viewing angle of up to 120° lets you see fish well beyond the sides of your boat and, taking even more guesswork out of the equation, Garmin’s exclusive HD-ID target tracking technology provides you with better separation and definition of images on the crisp well defined display.

The Garmin Echo 150 FishFinder is supplied complete a quick-release tilt mount and a versatile transom-mount transducer to help make installation as convenient as possible for you.

Features

• Audible alarms: Yes
• Dual-frequency sonar capable: Yes
• Dual-beam sonar capable: Yes
• Split-screen zoom: No
• Ultrascroll (displays fish targets at higher boat speeds): Yes
• Fish symbol ID (helps identify fish targets): Yes
• AutoGain technology (minimizes clutter, maximizes targets): Yes
• Whiteline (indicates hard or soft bottom): Yes (always on)
• Adjustable depth line (measures depth of underwater objects): No
• A-scope (real time display of fish passing through transducer beam): No
• Bottom lock (shows return from bottom up): No
• Water temperature log and graph: No
• Water temperature sensor included: Yes
• Water speed capable (displays speed on water): No
• Frequency: 200/77 kHz
• Transmit power: 200W (RMS)/1600W (peak to peak)
• Voltage range: 10V-20V input
• Cone angle: 60° or 120° (dual beam)
• Maximum depth: 1300 ft freshwater
• Depth capacity is dependent on water bottom type and other water conditions
• Garmin HD-ID technology

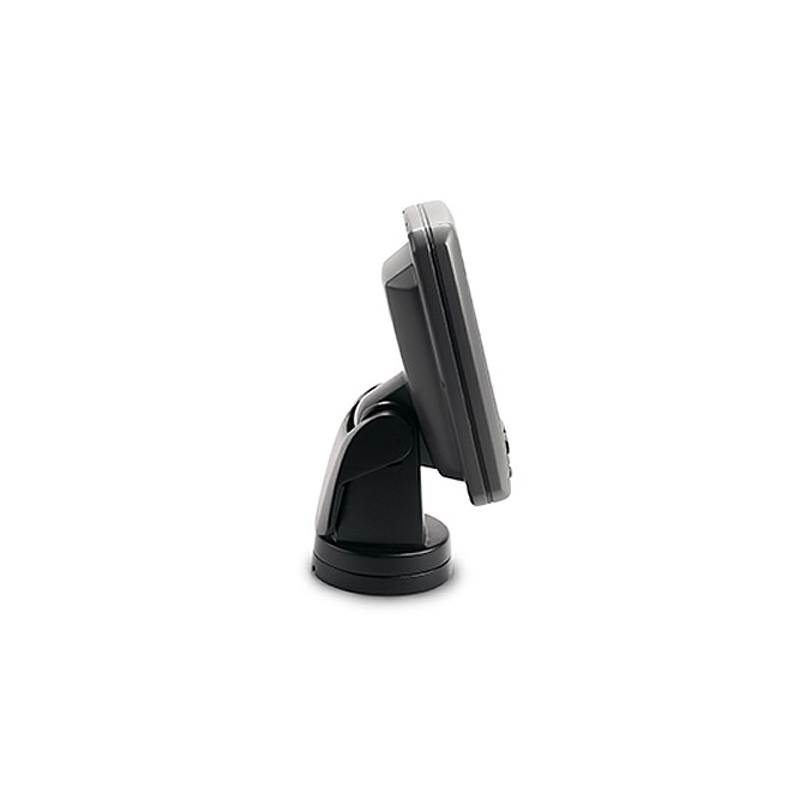

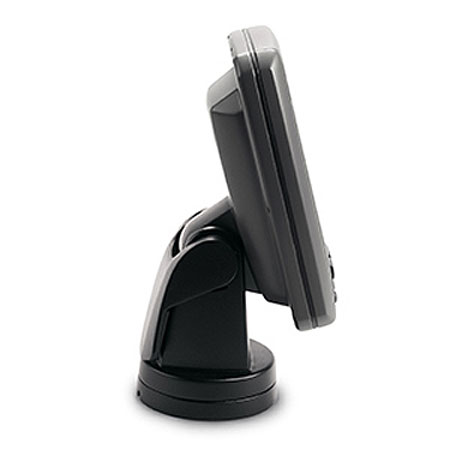

• Tilt/swivel mount, transducer, trolling motor clamp and transom mount

Physical and Performance

• Unit dimensions (W x H x D): 4.1 x 5.8 x 2.8 inches (10.4 x 14.7 x 7.1 cm)
• Display size (W x H): 2.38 x 3.21 inches (6.04 x 8.15 cm); 4-inch (10.16-cm) diag
• Display resolution (W x H): 160 x 256 pixels
• Display type: 4-inch, 8-level greyscale FSTN
• Weight: 270 g
• Waterproof: Yes (IPX7)
