GROUND TO AIR COMMUNICATIONS

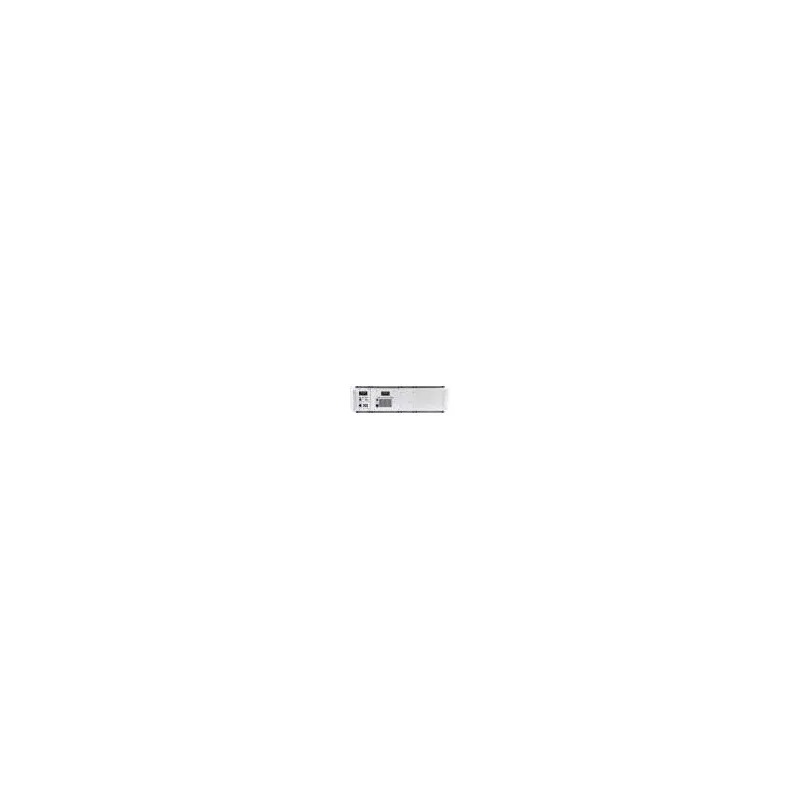

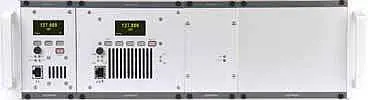

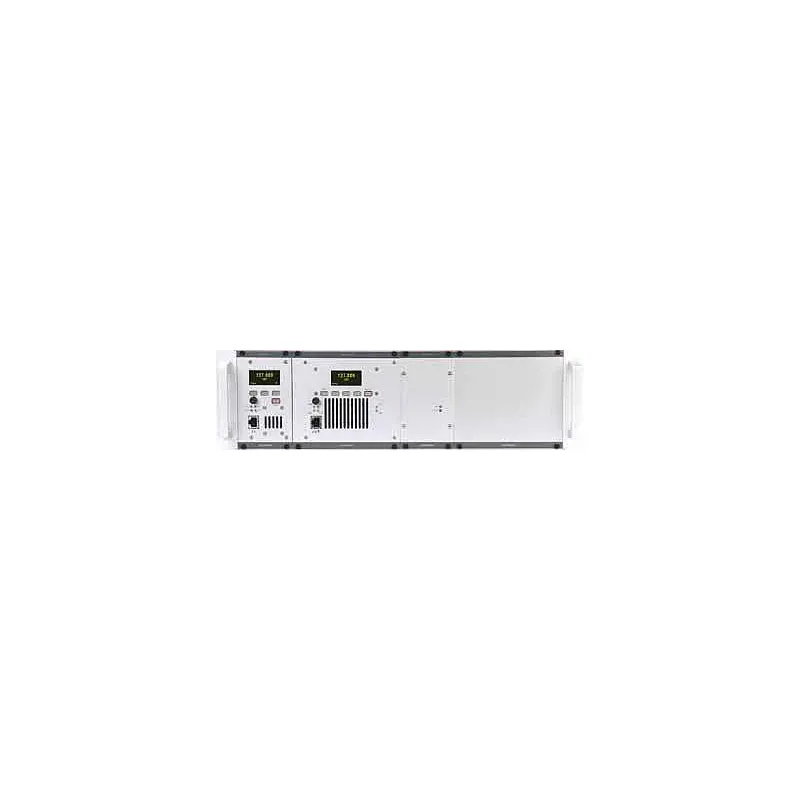

VHF AM Digital Multimode Transceiver TR-7710/25/50 Rack Mounted

Multi/Single Channel VHF/AM DSP Transmitter in 19” sub rack format, 99Ch fast recall store. AM MSK or D8PSK and VDL Mode 2. 25 and 8.33 kHz channel spacing. 118 to 137 MHz. LAN [SNMP], RS-232 or RS-485 serial interface, full digital control and diagnostics. VoIP capable. Operates from AC mains with auto-fail to 24v dc. power supply and sub rack included.

Complies with ETSI Specifications:-EN 300 676 technical characteristics. EN 301489 EMC standard. CE marked

84700 TR-7710 Transceiver Includes cables, connectors, 10W transmitter with PSU-7002 power supply, receiver, sub rack and technical manual

84700/25 TR-7725 Transceiver Includes cables, connectors, 25W transmitter with PSU-7002 power supply, receiver, sub rack and technical manual

84700/50 TR-7750 Transceiver Includes cables, connectors, 50W transmitter with PSU-7002 power supply, receiver, sub rack and technical manual

A number of Remote Control Units are available. From control of audio and PTT to a full Digital Control System using a central computer

Options:

• (84357) Data Link Applications enables the physical capability of the radio to receive and transmit VDL mode 2 packets using D8PSK modulation with 31.5 kbits/s data
• (84358) In Band Signalling option that enables keying of the transmitter with a user selectable inband tones on the receiver to signal squelch status
• (84359) Gas detection input (low output power)
• (84360) 118-144 MHz Extended frequency range
• (81860) ACU Antenna Change Over Unit, Main to Standby, 7000 series Multimode
• (82716) 7000 to 7000 Multimode Radio interface. To be used when interfacing 7000 Digital Multimode Radio to previous 7000 series

Accessories

• (91794) CXL3-1LW Antenna
• (82967) Peiker TM110TF handheld microphone
• (82968) Peiker TM168 Gooseneck

Microphones for 7000 Series Analogue Radio and Audio Remote Control Unit:

• (80325) Peiker TM110TF 6P handheld microphone
• (80327) Peiker PS12 Gooseneck
