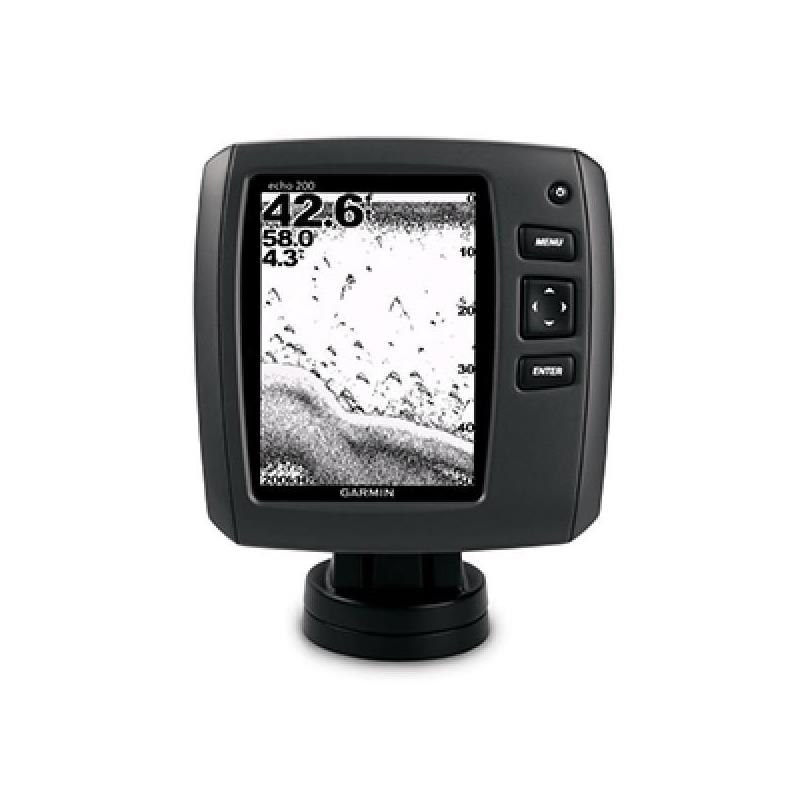

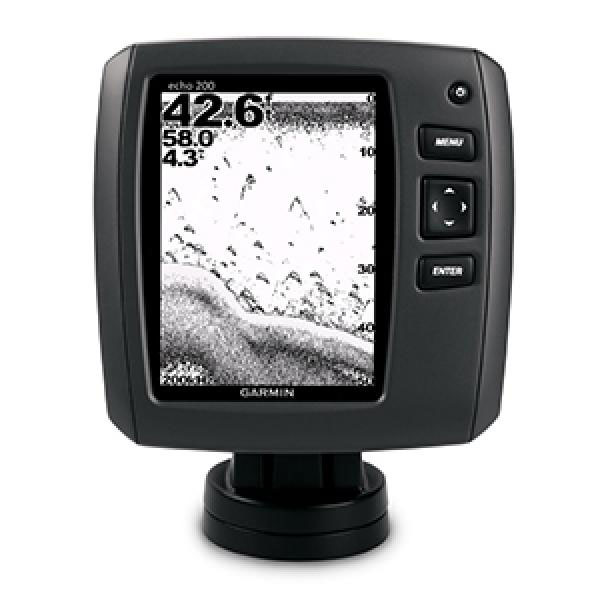

The Garmin Echo 200 FishFinder is a very good quality fishfinder at a very good value price.

The 5-inch greyscale display and the 300-watt RMS high-sensitivity sonar provides an excellent revelation of what is underneath your boat.

The Garmin Echo 200 FishFinder boasts the Garmin exclusive HD-ID target tracking technology which works with the other technological features to give you an impressively clear picture with the dual-beam transducer scanning as deep as 1500 feet, which is easily deep enough for most freshwater waters.

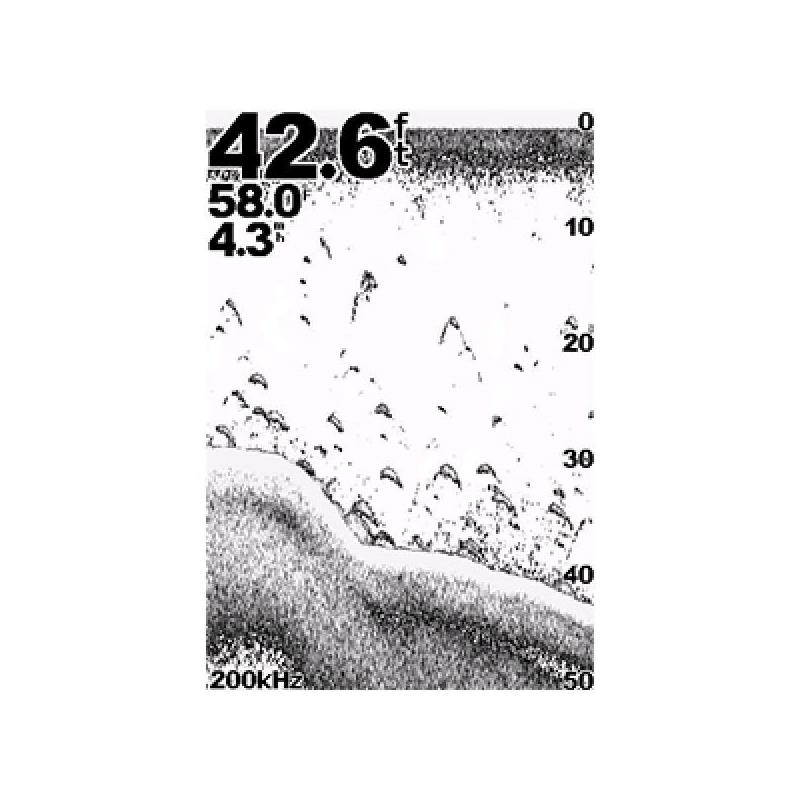

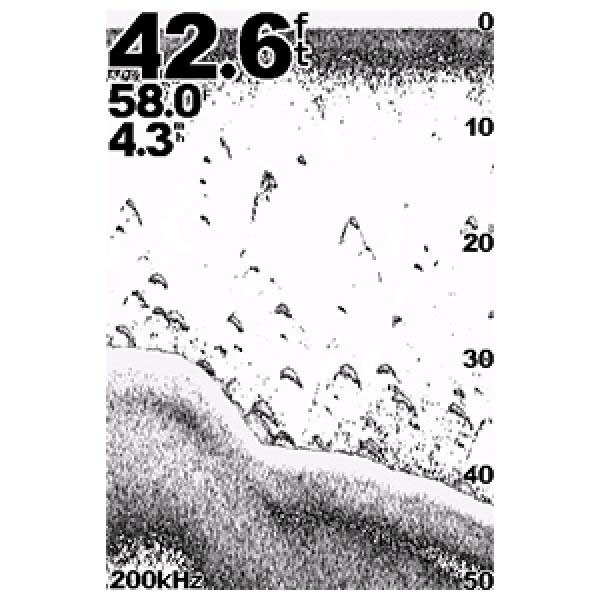

The Garmin Echo 200 FishFinder is also equipped with Garmin Smooth Scaling technology, which means you will not lose sight of the sonar history as the unit changes depth ranges and which also allows you to rewind your sonar history in order to ensure that you have not missed something interesting on the display.

Features

• Garmin HD-ID technology

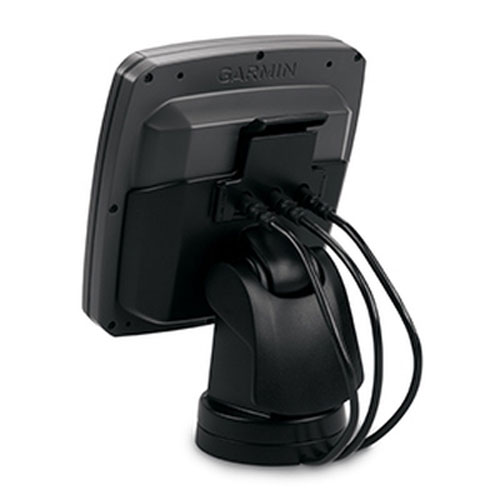

• Tilt/swivel mount, transducer, trolling motor clamp and transom mount
• Audible alarms: Yes
• Dual-frequency sonar capable: Yes
• Dual-beam sonar capable: Yes
• Split-screen zoom: Yes
• Ultrascroll (displays fish targets at higher boat speeds): Yes
• Fish symbol ID (helps identify fish targets): Yes
• AutoGain technology (minimizes clutter, maximizes targets): Yes
• Whitleline (indicates hard or soft bottom): Yes (always on)
• Adjustable depth line (measures depth of underwater objects): Yes
• A-scope (real time display of fish passing through transducer beam): Yes
• Bottom lock (shows return from bottom up): Yes
• Water temperature log and graph: Yes
• Water temperature sensor: Yes
• Water speed capable (displays speed on water): Yes
• Frequency: 200/77 kHz
• Transmit power: 300W (RMS)/2400W (peak to peak)
• Voltage range: 10V-28V input
• Core angle: 60° or 120° (dual beam)
• Maximum depth: 1500 ft freshwater
• Depth capacity is dependent on water bottom type and other water conditions

Physical and Performance

• Unit dimensions (W x H x D): 6.0 x 5.9 x 1.8 inches (15.2 x 15.0 x 4.6 cm)
• Display size (W x H): 2.9 x 4.0 inches (7.4 x 10.16 cm); 5-inch (12.7-cm) diag
• Display resolution (W x H): 320 x 480 pixels
• Display type: 16-level greyscale HVGA
• Weight: 499 g
• Waterproof: Yes (IPX7)
