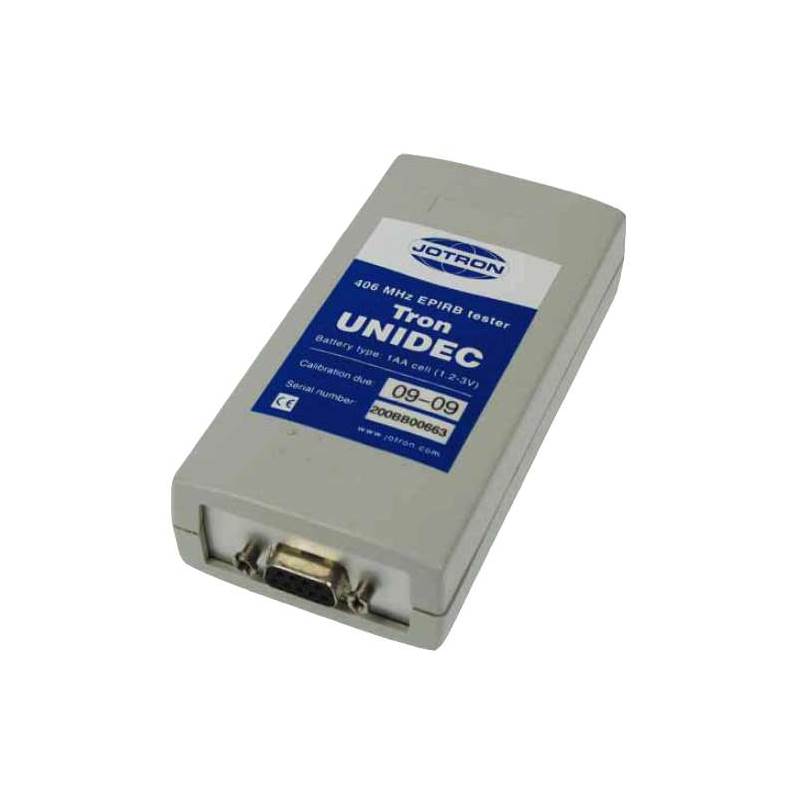

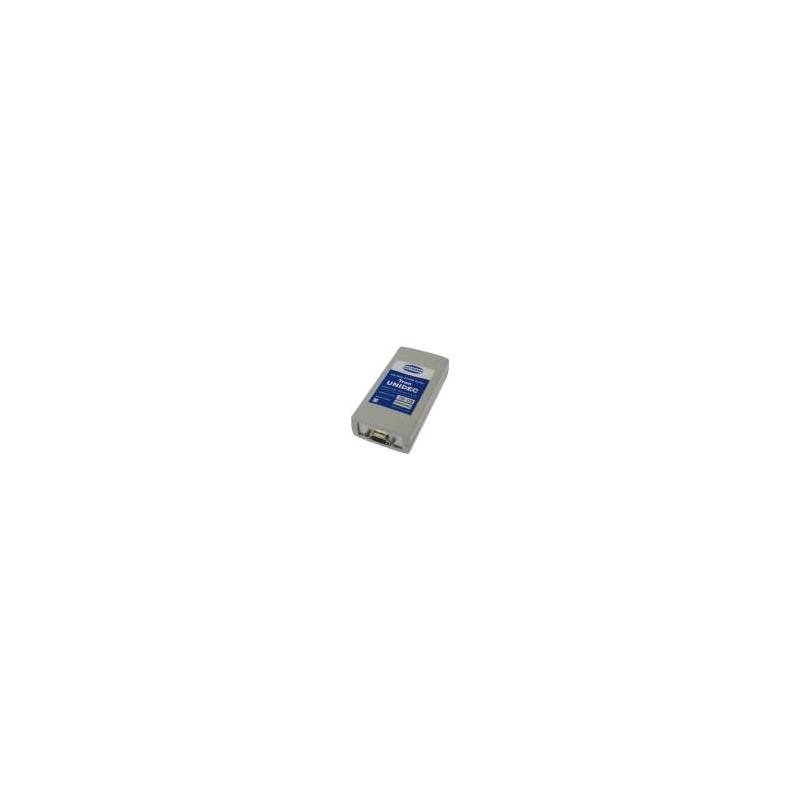

The Jotron TRON UNIDEC 406 MHz EPIRB Tester 99790 is the latest of a long-running series of Cospas-Sarsat EPIRB testers that Jotron have manufactured over the last 25 years.

This tester decodes and tests all types of Cospas-Sarsat beacon signals across a frequency range of 406 to 406.1 MHz.

SOLAS regulations require the annual testing of 406 MHz EPIRBs to measure if the frequency and power of the unit meets standards deemed as satisfactory.

The Jotron TRON UNIDEC 406 MHz EPIRB Tester 99790 has some useful and convenient post-testing features. The report it produces can easily be saved and/or printed and there is also the option to transfer the information from the decoder to a PC or laptop for further processing of the data.

In addition, a certificate can be generated containing the decoded EPIRB data as well as the beacon's transmission measurements.

Features

• Wideband receiver
• Decodes and tests all types of Cospas-Sarsat beacon signals
• Frequency range 406.00-406.100MHz
• Complies and exceeds IMO's MSC/Circ 1040:
• Annual testing of 406 MHz Satellite EPIRB, as required by SOLAS regulation IV/15.9
• Measure frequency and power
• Easy save/print function of report

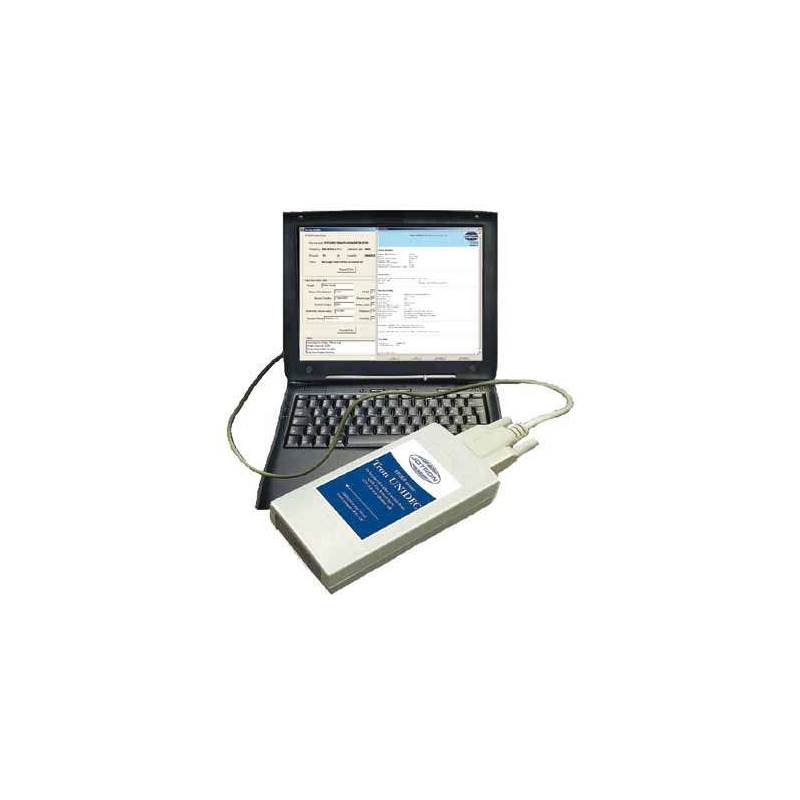

• Option to transfer the information from decoder into PC for further processing
• Certificate generated containing the decoded EPIRB data as well as beacon's transmission measurements
• Recommended maintenance: Calibration every 2 years; exchange unit is available

Specification

• Dimensions: 30 x 58 x 119mm
• Weight: 170g
• Frequency range: 406.00-406.10MHz
• FR input level: 70µV to 300mV
• Modulation: Biphase L
• Interface: Serial port, RS232
• Frequency resolution: 5Hz
• 406 MHz RF level: 0–50dB
• Max operation distance from beacon: 0.5-6m
• Operating life: Approx 5hrs use, only power when measuring
