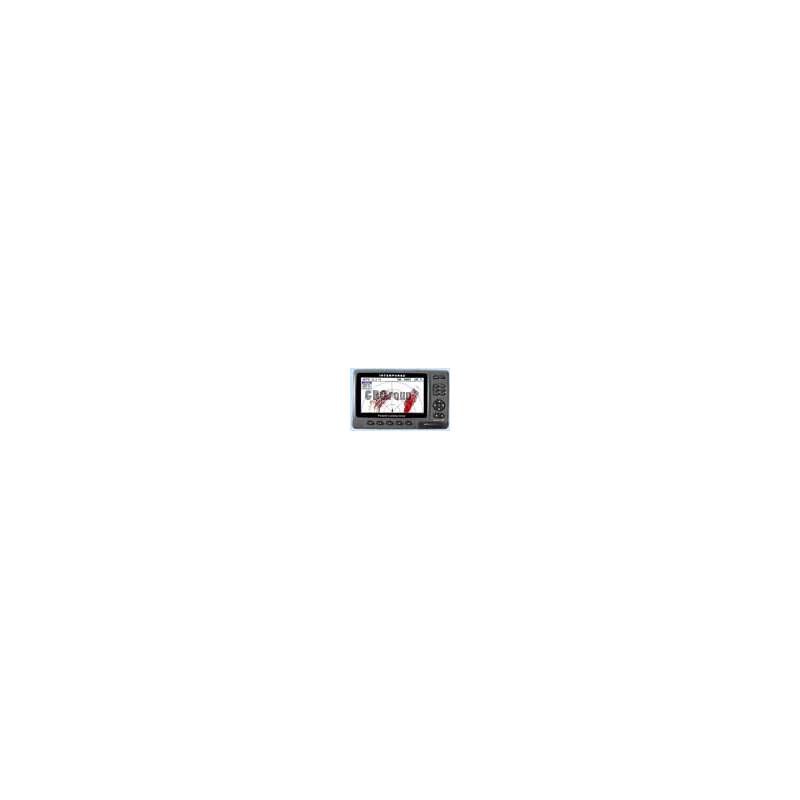

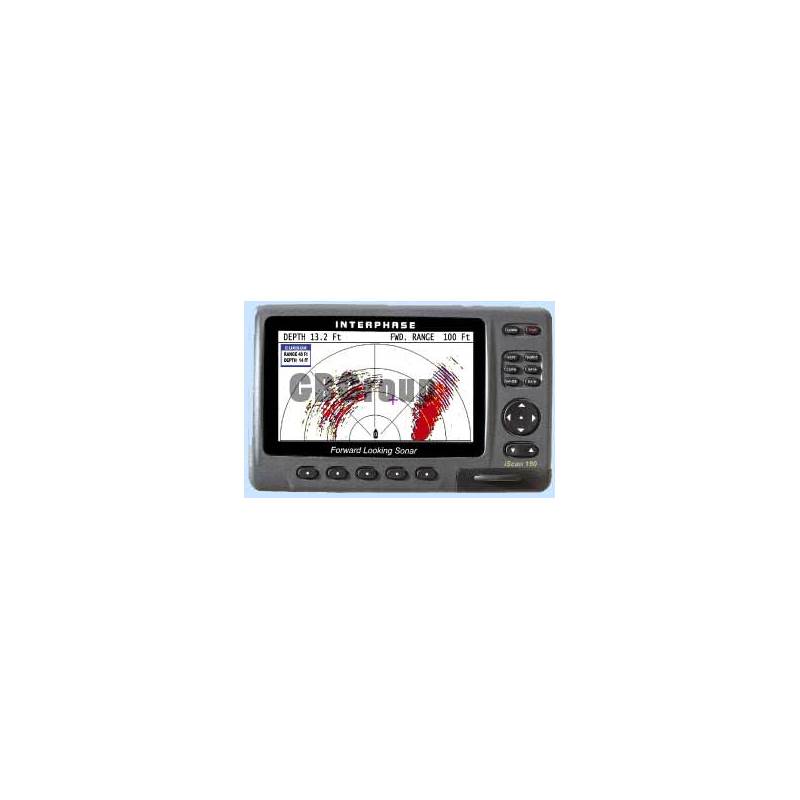

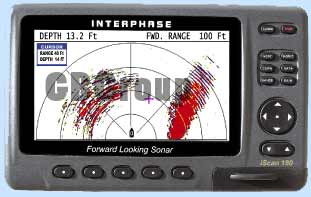

The all new 3000-Watt Interphase iScan 180 uses two phased-array transducers with no moving parts. One transducer is mounted on either side of the vessel's keel to enable a full 180° horizontal scan sector (90° each side of the vessel's bow) and allows for easy installation on trawlers, large cruising sailboats and other vessels with deep or full keels.Working like an acoustic underwater radar, the new Interphase iScan 180 can function in three useful modes.

The Forward Vertical Scanning mode shows a view from the surface directly ahead of the vessel to the bottom below and is very useful for monitoring changing bottom conditions and detecting fish or other obstacles. In the Forward Horizontal Scanning mode, the Interphase iScan 180 uses two electronically linked transducers to smoothly steer a searchlight-like beam over a full 180°. In either mode, the beam can be steered directly down to view either a split or full-screen conventional downward-looking depth-sounder view.

With 3000 watts of peak-to-peak power and ranges up to 1200 feet ahead, the Interphase iScan 180 is a truly unique tool for detecting hazards like submerged shipping containers, 'deadheads', rock pinnacles, coral reefs and shallow water conditions and the 180° horizontal scan mode is ideal for following channels or finding safe passage through reefs.

Features

• Full 180° forward horizontal scan
• Uses two through-hull transducers (port/starboard) to eliminate keel interference
• Immediate depth and range information with unique screen cursor

• High Power for Forward Range up to 1200 feet
• Full-Screen Vertical and Horizontal Forward-Looking Displays
• Split-Screen Displays Showing Downlooking Depth or Large Digital Data
• Easy One-Touch User Interface
• NMEA 0183 Depth Output
• NMEA 0183 Ground Speed/Temp and lat/lon inputs
• Power Off Memory Remembers All Settings
• Quick-Disconnect Mount
• Keel-Offset Adjustment
• Adjustable Display Backlight
• Backlit Keypad
• Video Input for Camera, VCR or DVD
• Forward Range and Depth Alarms
• External Alarm Capabilities
• Three Selectable Colour Schemes for Night, Sun and Normal Viewing
• Scan Sector Width and Direction Adjustments
• Simple Second-Station Connection
• User-Selectable Languages and Units

Built to Work, Built to Last

• 480 x 234 Pixels
• Adjustable CCFL Backlight
• Large (3.41 H x 6.1 W inches) TFT Sunlight Viewable Colour LCD
• Flush-Mount Template Included
• Weight of Display Approx. 3.5 lb
• Fog- and Waterproof
• Over 3000 W Peak-to-Peak Power
• 200-kHz Operation
• 8-Channel Phased Array Transducer, No Moving Parts
• 12° Beam Angle
• Compact Dimensions (W x H x D): 9.4 x 5.9 x 3.25 inches
• Time-Variable Gain Receiver
• 10 to 16 VDC, less than 1.0 Amp
• Sunlight, Normal and Night Colours
• Split-Screen Forward Vertical and Downlooking Display
• Split-Screen Forward Horizontal and Downlooking Display
• Split-Screen Forward Horizontal and Large Digital Data Display
• Split-Screen Forward Vertical and Large Digital Data Display
• Full-Screen Vertical Horizontal and Setup Displays
• Full Downward-Looking Display with Zoom
